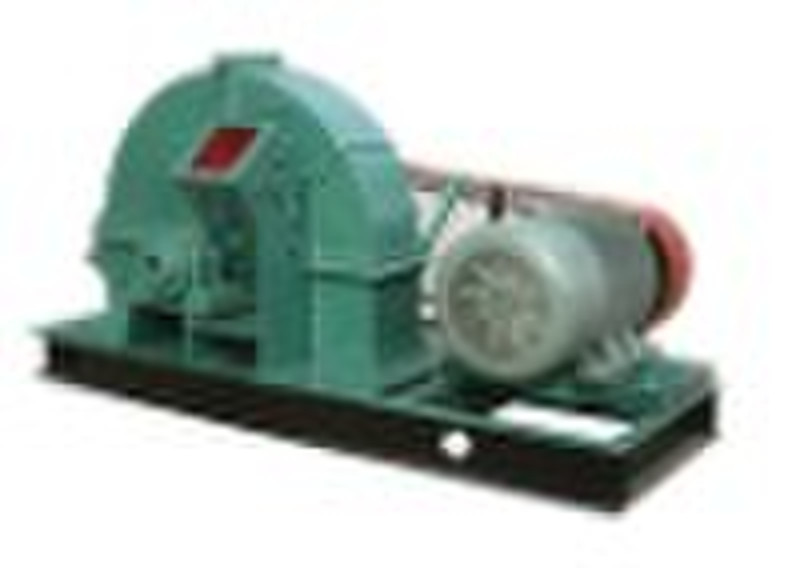

Disc Wood Chipper with the Competitive Price

Detailed introduction of Woodchipping machine:Screw plate-shaped chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory,forest tree factory,paper mill,thermsl power plant,etc.Chipping machine mainly composed of four parts such as principal machine,coupling,bottom frame and motor,etc,in which the principal machine of chipping machine is mainly composed of cutter head,upper and low cobers,feed inlet and outlet,etc.Main technical parameters of timber chipping machineModel of machine600800Diameter of cutter head(mm)600800Rotary speed of cutter head(r/min)970740Length of wood chip(mm),thickness(mm)15-23 2-315-35 3-7Mode of feedingdeclinationdeclinationDimension of feeding opening (mm)150*140250*250Productive capacity(t/h)1-33-5Power of electric motor(kw)1530Maximum diameter of cutting wood(mm)200250Mode of dischargingramprampWeight of complete machine(kg)11921680External dimension(L*W*H)2002*1175*13602820*1838*1492 Besides, we also provide all other kinds of wood/timber crusher machineries, which could meet different requirement. The enquiries are walmly welcome.
